NO4060 Nickel Based Welding Wire Ernicu 7 Welding Rod

Name: NO4060 Nickel Based Welding Wire Ernicu 7 Welding Rod
Brand: KAIXIN
Price: 1 USD

NO4060 Nickel Based Welding Wire Ernicu 7 Welding Rod Manufactures

Brand Name : KAIXIN

Model Number : KX-Alloy Cu-7

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80TONS PER MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests request

Alloy Type : Fe-Ni Constant Expansion Alloy

Delivery State : Soft State

Size : Negotiable

Shape : Wire,Strip, Rod, Pipe, Plate

Raw Materials : NI35-37%，Fe Rem

Executive Standard : ASTM1684

Application : Positioning device, bimetal temperature controller, advanced composite die for aerospace industry

Features : Linear thermal expansion coefficient close to zero, high strength and toughness at low temperature

Contact Now

KX NO4060 Welding Wire Light Rod on Nickel Based Welding Wire Alloy

Product Description and Application

The NO4060 is called ERNiCu-7, SNi4060, NICu30Mn3Ti

NO4060 is used for welding monel 400 alloy; And the welding of monel400 alloy to steel, for surfacing steel, has good strength and corrosion resistance in many media, including seawater, salt and reduced acid.

Process Performance and Requirements

Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

Product Chemical Composition

Model

Grade

Ni^a

Co^a

Nb^b

Others^c

SNi4060

NO4060

≤

0.15

2.0

4.0

≤

2.5

≤1.2

28.0

32.0

≥

62.0

≤

1.2

1.5

3.0

Other Technical Requirements

Welding Wire Diameter and Allowable Deviation

Package	Welding Wire Diameter	Allowable Deviation

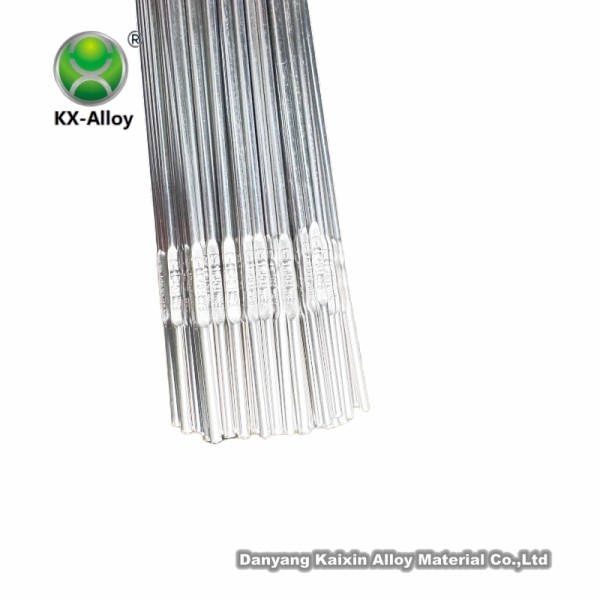

Vertical Bar	1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4	±0.1
Welding Wire Coil	1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4	+0.01 -0.04

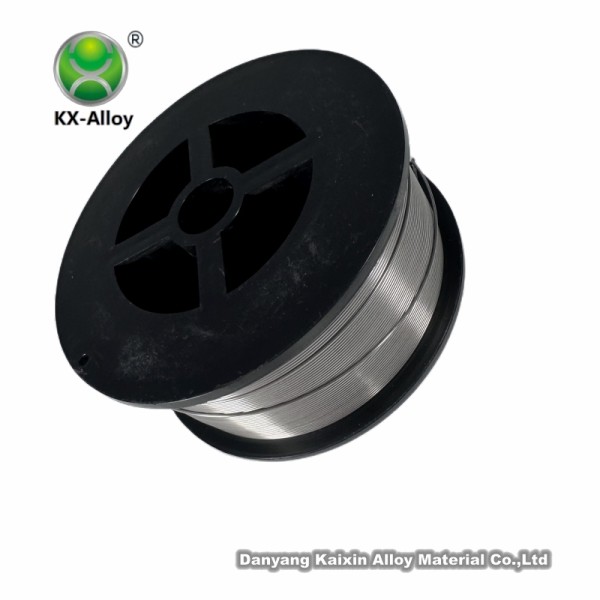

Wire Reel Diameter 100mm and 200mm	0.8,0.9,1.0,1.2,1.4,1.6
Wire Reel Diameter 270mm and 300mm	0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2
Welding wire can be produced in other sizes, deviations and package as agreed by both parties
Allowable deviation of ±0.1 diameter when used for hand-filled wire

Welding Wire Loose Diameter and Warp Pitch

Diameter of Wire Reel	100	200	270,300
Loose Diameter	60~380	250~890	380~1300
Warp Pitch	≤13	≤19	≤25

Productive Process

NO4060 Nickel Based Welding Wire Ernicu 7 Welding Rod

Professional Customization

Cold-drawn Wire	¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire	¢5.5~¢20mm(Delivery in rolls)
Strip	thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe	¢60~350mm,L800-2500mm
Hot-rolled Burnishing	¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing	¢2.5~18mm,L1000-8000mm
Seamless Tube	¢1~275mm,wall thickness 0.2~30,L1000-8000mm
