UNS N08800 High Temperature Alloy ASTM Iron Chromium And Nickel

Brand Name : KAIXIN

Model Number : KX-Alloy HT800

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests request

Shape : Wire, Strip, Rod, Tube, Plate

Alloy Type : Nickel-iron-chromium Alloy

Raw Materials : NI30-35%,CR19-23%

Executive Standard : ASTM

Delivery State : Sosoloid

Application : Used for petroleum, chemical, energy and polysilicon

Features : A kind of material widely used in the equipment construction requiring corrosion resistance, heat resistance, strength and stability. Its service temperatures can be up to 816°C, which has general corrosion resistance to Aqueous Medium.

Size : Negotiable

Contact Now

KX UNS N08800 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy

Product Description and Application

UNS N08800 is also known as W.N.1.4876, NCF800

UNS N08800 is mainly composed of nickel, iron and chromium. It has good high-temperature strength, corrosion resistance and machinability. N08800 is widely used in chemical industry, petroleum, heat treatment, energy and etc fields,which is used in petroleum, chemical industry, energy, heat treatment and etc high temperature, corrosive environment applications, such as petrochemical catalyst support, electric furnace heater tube, power generation boiler and etc equipment.

Process Performance and Requirements

  • Product Fusion Process

Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)

  • Product Chemical Composition

Cr Ni C Si Mn P S Fe
≤
19.0-23.0 30.0-35.0 0.10 1.00 1.50 0.030 0.015 Rem

  • Product Physical Property

Density 7.94/cm3
Melting Point 1350-1400℃
Magnetic Energy Nil

  • Product Mechanical Property

Solid Situation

Tensile strength

σb Mpa

Yield point

σs Mpa

Elongation after breaking

δ %

Hardness

HV
1000°C 595 330 ≥40 200

  • UNS N08800 Implementation Standards

ASTM B409- Stainless Steel Hot Rolled Steel Sheet

ASTM B514- Stainless Steel Cold Rolled Steel Sheet

ASTM B515- Cold Rolled Steel Strip of Stainless Steel/Acid resistant Steel

  • Productive Process

UNS N08800 High Temperature Alloy ASTM Iron Chromium And Nickel

  • Professional Customization

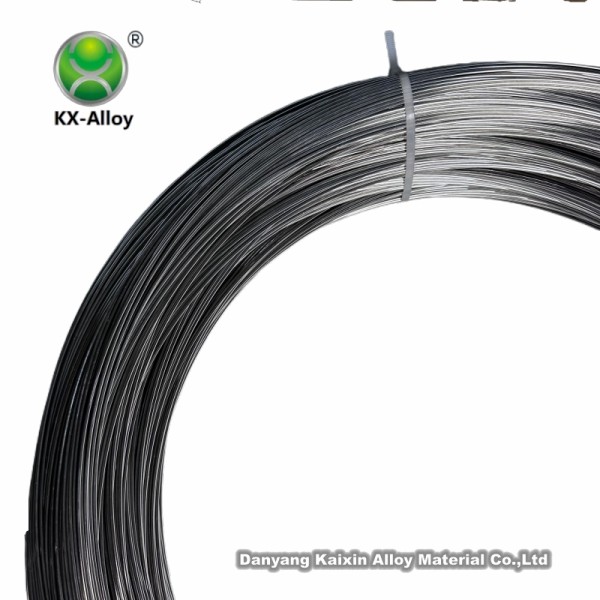

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)

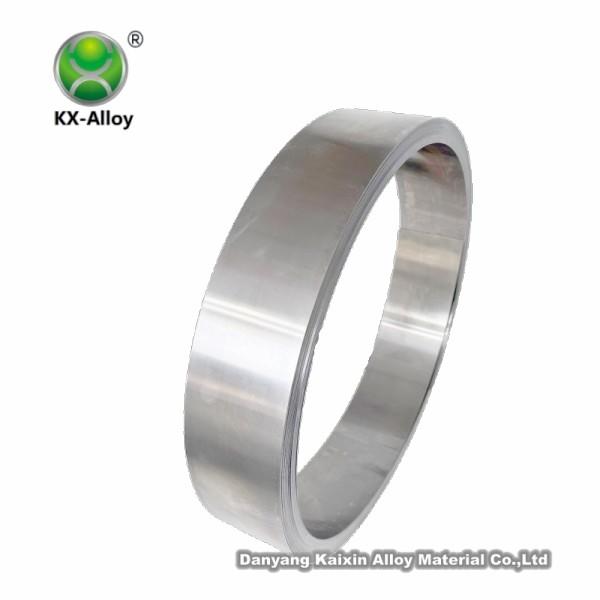

Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm

UNS N08800 High Temperature Alloy ASTM Iron Chromium And NickelUNS N08800 High Temperature Alloy ASTM Iron Chromium And NickelUNS N08800 High Temperature Alloy ASTM Iron Chromium And NickelUNS N08800 High Temperature Alloy ASTM Iron Chromium And NickelUNS N08800 High Temperature Alloy ASTM Iron Chromium And NickelUNS N08800 High Temperature Alloy ASTM Iron Chromium And NickelUNS N08800 High Temperature Alloy ASTM Iron Chromium And Nickel
